| Tên thương hiệu: | ECHU |
| Số mẫu: | EKM62373, EKM62383, EKM61100, EKM62100, EKM61373 |
| MOQ: | 200Mét |
| giá bán: | $0.155-$2.988/M |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 10000 km/tuần |

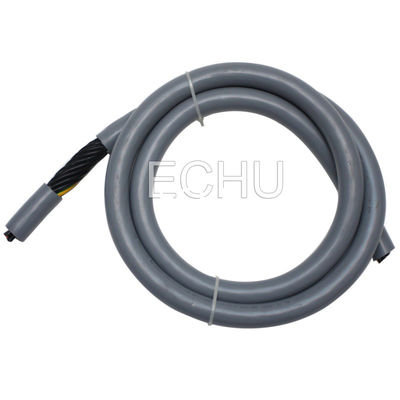

Flexible Drag Chain Cable
Applications:

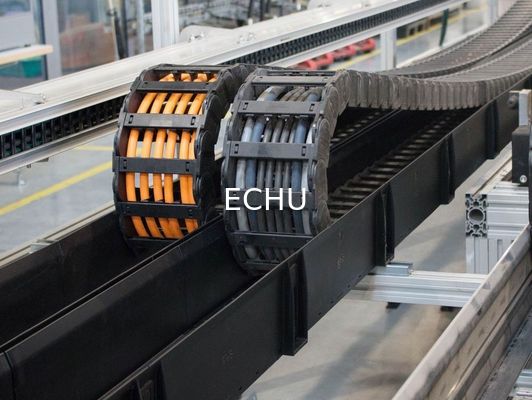

It is suitable for day or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyor system, crane and other related equipments.
Properties:
Waterproofing, oil resistance, cool resistance, abrasion resistance, flame resistance, anti-ultraviolet
Bending life: About 8, 000, 000 times

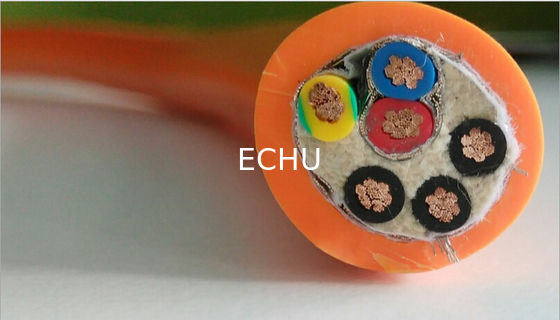

Structure:
Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295 CLASS6
Insulation: PP
Color: ≤ 0.5mm brown, black, blue, purple, pink, orange
≥ 0.5mm cores black with consecutive white numbering
3 cores or more with green/ yellow earth wire
Sheath: NBR
Black (RAL9005) or grey (RAL7001),Orange (RAL2003)
Related voltage: SQ<0.5mm2: 300/300V
SQ>0.5mm2: 300/500V
Test voltage: 2000V
Temperature range:
Fixed Installation: -30 ℃---+70℃
Flexing Installation: -20 ℃---+70℃
The minimum bending radius: Fixed: 5xD
Moved: When travel < 10m, bending radius is 8xD
When travel > 10m, bending radius is 10xD
| Type | Size | Weight KG/KM | O.D.(mm) |
| EKM62373 | 0.14*2C | 32 | 4.3 |
| EKM62373 | 0.14*3C | 36 | 4.5 |
| EKM62373 | 0.14*4C | 41 | 4.8 |
| EKM62373 | 0.14*5C | 46 | 5.2 |
| EKM62373 | 0.14*6C | 53 | 5.6 |
| ...... | |||
| ...... | |||
| EKM62373 | 0.20*2C | 34 | 4.6 |
| EKM62373 | 0.20*3C | 39 | 4.8 |
| EKM62373 | 0.20*4C | 44 | 5.1 |
| ...... | |||
| ...... | |||
| EKM62373 | 0.25*2C | 37 | 4.7 |
| EKM62373 | 0.25*3C | 42 | 4.9 |
| EKM62373 | 0.25*4C | 59 | 5.7 |
| ...... | |||
| ....... | |||
| ...... | |||
| EKM62373 | 4.0*2C | 280 | 12.1 |
| EKM62373 | 4.0*3C | 351 | 13.4 |
| Or other sizes not mensioned | |||
