| Tên thương hiệu: | ECHU |
| Số mẫu: | UL3614 |
| MOQ: | 300 mét |
| giá bán: | USD0.1-USD12.288/M |
| Điều khoản thanh toán: | T/T, Western Union, L/C |
| Khả năng cung cấp: | 10000 km/tuần |

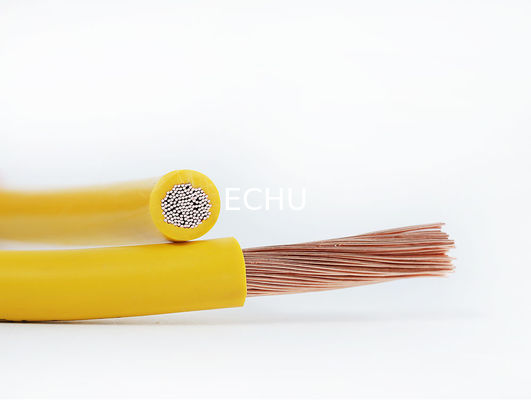

EPDM insulation Cable UL CABLE UL3614
UL Approval
Rating: 125 deg C, No flexing for 150 deg C, 1000 Vac, Horizontal flame.
Conductor: 26 AWG - 500 kcmil, solid or stranded
Standard: Appliance Wiring Material UL 758
Application:
Internal wiring, where no flexing occurs either after installation or during servicing.
| Type | Size | O.D.(mm) | Weight(KG/KM) |
| UL3614 | 26AWG | 3 | 13 |
| UL3614 | 25AWG | 3.1 | 13 |
| UL3614 | 24AWG | 3.2 | 14 |
| UL3614 | 23AWG | 3.2 | 15 |
| UL3614 | 22AWG | 3.3 | 16 |
| UL3614 | 21AWG | 3.4 | 17 |
| UL3614 | 20AWG | 3.5 | 19 |
| UL3614 | 19AWG | 3.6 | 21 |
| UL3614 | 18AWG | 3.7 | 23 |
| UL3614 | 17AWG | 3.9 | 26 |
| UL3614 | 16AWG | 4 | 30 |
| UL3614 | 15AWG | 4.2 | 34 |
| UL3614 | 14AWG | 4.4 | 39 |
| UL3614 | 13AWG | 4.7 | 46 |
| UL3614 | 12AWG | 4.9 | 53 |
| UL3614 | 11AWG | 5.4 | 65 |
| UL3614 | 10AWG | 5.7 | 78 |
| UL3614 | 9AWG | 6.1 | 95 |
| UL3614 | 8AWG | 7.2 | 124 |
| UL3614 | 7AWG | 7.7 | 148 |
| UL3614 | 6AWG | 8.8 | 186 |
| UL3614 | 5AWG | 9.5 | 225 |
| UL3614 | 4AWG | 10.2 | 272 |
| UL3614 | 3AWG | 11.2 | 332 |
| UL3614 | 2AWG | 12.1 | 405 |
| UL3614 | 1AWG | 14.2 | 529 |
| UL3614 | 1/0AWG | 15.3 | 645 |
| UL3614 | 2/0AWG | 16.7 | 793 |
| UL3614 | 3/0AWG | 18.2 | 977 |
| UL3614 | 4/0AWG | 19.9 | 1207 |
