| Tên thương hiệu: | ECHU |
| Số mẫu: | UL3340 |
| MOQ: | 300 mét |
| giá bán: | USD0.655-USD2.288/M |
| Điều khoản thanh toán: | T/T, Western Union, L/C |
| Khả năng cung cấp: | 10000 km/tuần |

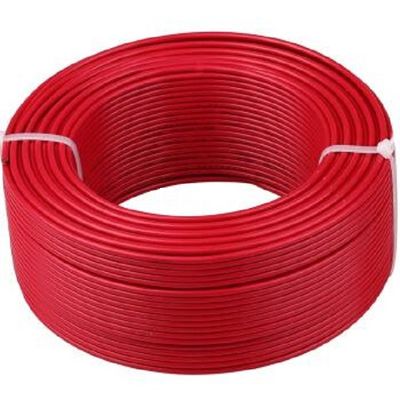

EPDM insulation Cable UL CABLE UL3340
UL Approval
Rating: 125 deg C, 600 Vac, 750 Vdc. No flexing - 150 deg C, 600 Vac or 750 Vdc. Horizontal flame.
Conductor: 26 AWG - 500 kcmil, solid or stranded
Standard: Appliance Wiring Material UL 758
Application:
Motor Leads and Internal Wiring of Appliances where exposed to temperatures not exceeding 125 deg C. Where no flexing occurs either after installation of during servicing, temperatures not to exceed 150 deg C.
| Type | Size | O.D.(mm) | Weight(KG/KM) |
| UL3340 | 26AWG | 3 | 13 |
| UL3340 | 25AWG | 3.1 | 13 |
| UL3340 | 24AWG | 3.2 | 14 |
| UL3340 | 23AWG | 3.2 | 15 |
| UL3340 | 22AWG | 3.3 | 16 |
| UL3340 | 21AWG | 3.4 | 17 |
| UL3340 | 20AWG | 3.5 | 19 |
| UL3340 | 19AWG | 3.6 | 21 |
| UL3340 | 18AWG | 3.7 | 23 |
| UL3340 | 17AWG | 3.9 | 26 |
| UL3340 | 16AWG | 4 | 30 |
| UL3340 | 15AWG | 4.2 | 34 |
| UL3340 | 14AWG | 4.4 | 39 |
| UL3340 | 13AWG | 4.7 | 46 |
| UL3340 | 12AWG | 4.9 | 53 |
| UL3340 | 11AWG | 5.4 | 65 |
| UL3340 | 10AWG | 5.7 | 78 |
| UL3340 | 9AWG | 6.1 | 95 |
| UL3340 | 8AWG | 7.2 | 124 |
| UL3340 | 7AWG | 7.7 | 148 |
| UL3340 | 6AWG | 8.8 | 186 |
| UL3340 | 5AWG | 9.5 | 225 |
| UL3340 | 4AWG | 10.2 | 272 |
| UL3340 | 3AWG | 11.2 | 332 |
| UL3340 | 2AWG | 12.1 | 405 |
| UL3340 | 1AWG | 14.2 | 529 |
| UL3340 | 1/0AWG | 15.3 | 645 |
| UL3340 | 2/0AWG | 16.7 | 793 |
| UL3340 | 3/0AWG | 18.2 | 977 |
| UL3340 | 4/0AWG | 19.9 | 1207 |
